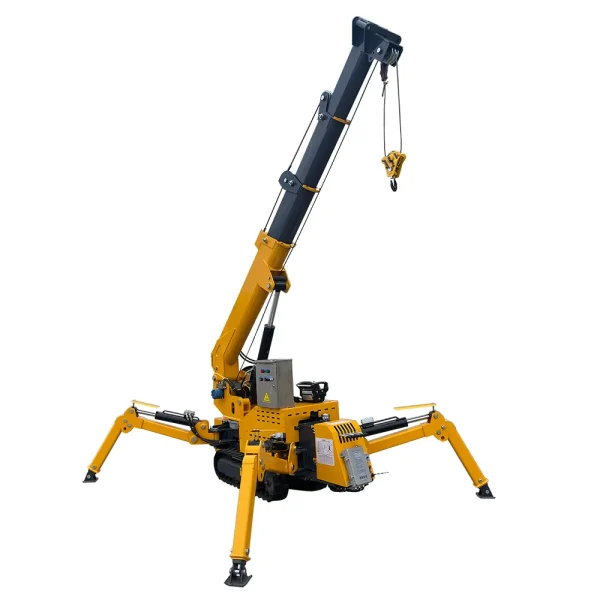

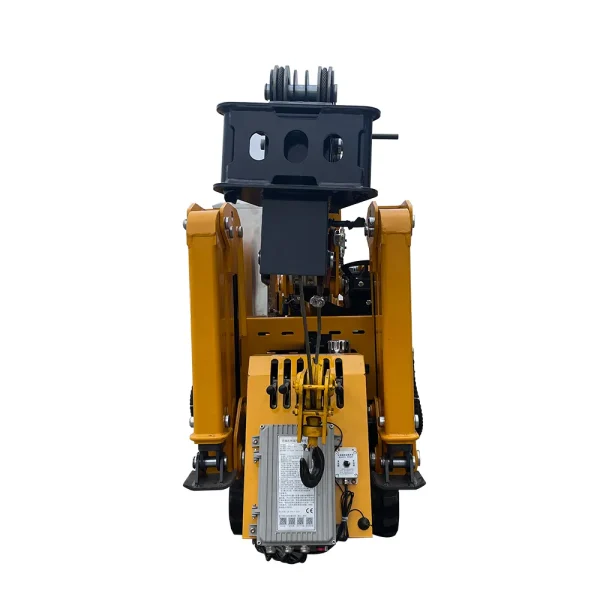

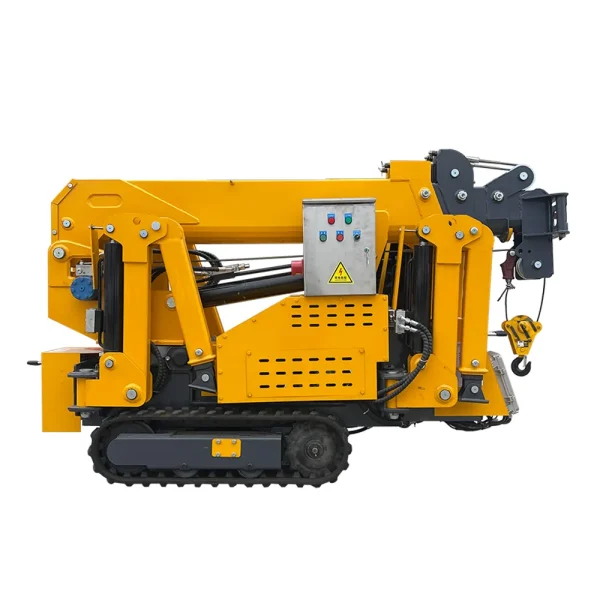

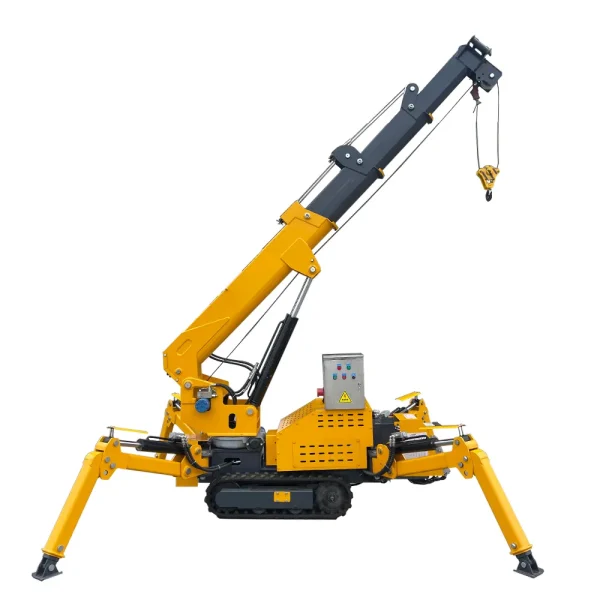

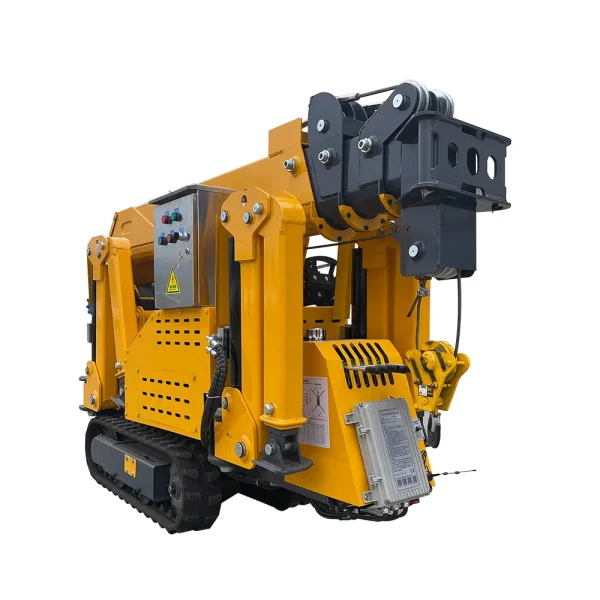

| Spider Crane SPECIFICATION |
| Spider crane Model |
Spider crane HC1.0BA |
Spider crane HC1.0BB |
Spider crane HC1.0BC |
| Spider crane Power type |
Gasoline engine
+Electric motor |
Electric motor |
Battery pack
+Electric motor |
| Spider crane Lifting Capacity |
1T |
| Spider crane Max operating radius |
5.2m*0.18T |
| Spider crane Max. above ground lift |
8m (ratio x2) |
| Spider crane Winch |
Spider crane Winch type |
Hydraulic motor drive |
| Spider crane Hook rising speed(ratio x4) |
≈2.3m/min |
| Spider crane Wire rope diameter and length |
Φ8mmx20m（Max) |
Spider crane Telescopic
device |
Spider crane Boom type |
U-shaped fully automatic 4 stages |
| Spider crane Boom length |
2.1m-5.5m |
| Spider crane Boom extension length/time |
Fully extended/30s |
| Spider crane Heaving device |
Spider crane Boom angle/time |
0-70 °/50sec |
| Spider crane Swing device |
Spider crane Rotation angle/speed |
0-360 ° continuous/ 107s |

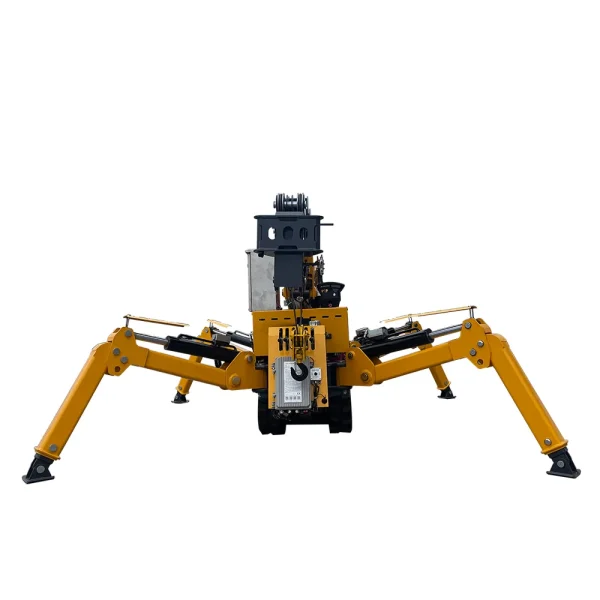

| Spider crane Outriggers |
Spider crane Outrigger operation type |
Manual rotation, automatic outriggers |
| Spider crane Max extension range |
3120mm*2950mm |
Spider crane Driving
device |
Spider crane Driving type |
Hydraulic motor drive |
| Spider crane Driving speed |
0-0.3km/h |
| Spider crane Climbing ability |
20° |
| Spider crane Track (length × width) |
1110mm*180mm |
Spider crane Power
system |
Spider crane Diesel Engine |
Spider crane Battery pack |
Spider crane Electric motor |
| Spider crane Model |
Honda Gx390 |
Battery
capacity |
200Ah |
Model |
YYB112M-4
(3-phase AC
asynchronous motor) |
| Spider crane Displacement |
0.389L |
Working time |
3-5h |
Voltage |
AC380V(50Hz) |
| Spider crane Rated output power |
9.6kw |
DC motor |
With battery pack |
Power/speed |
4Kw 1440r/min |
| Spider crane Starting type |
Electric start |
Voltage |
DC48V |
/ |
/ |
| Spider crane Fuel |
Gasoline |
Power/speed |
6kw 2000r/min |
/ |
/ |
| Spider crane Fuel tank capacity |
6.1L |
/ |
|
/ |
/ |
Spider crane Operation
system |
Spider crane Remote control type/distance |
Wireless remote control (joystick) /100m |
| Spider crane Outriggers |
Manual operation |
Manual operation |
Manual operation |
| Spider crane Driving |
Remote control/
manual operation |
Manual operation |
Remote control/
manual operation |
| Spider crane Boom |
Remote control/
manual operation |
Remote control/
manual operation |
Remote control/
manual operation |

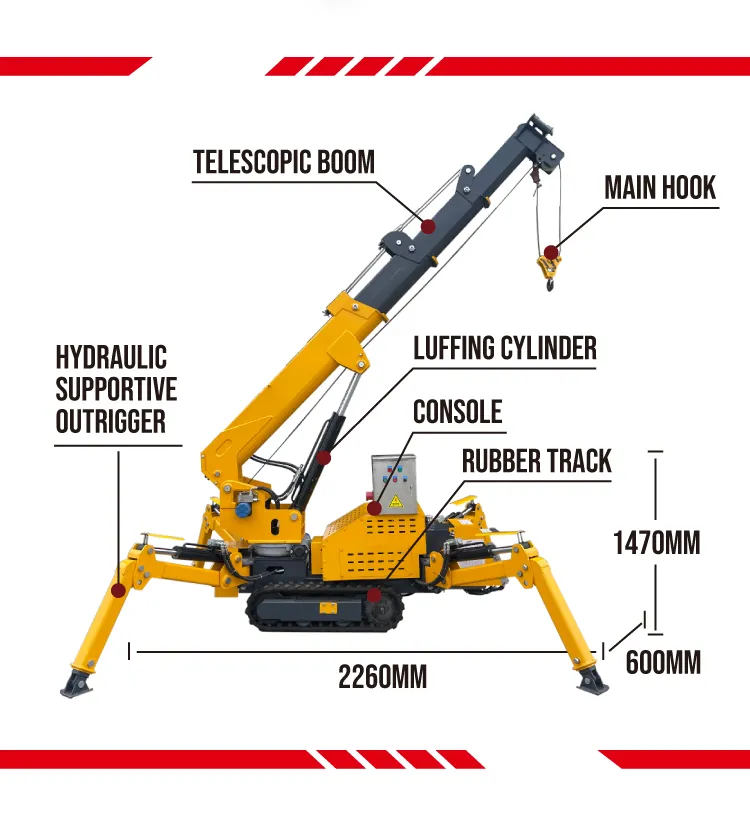

Spider crane Overal
dimensions |
Spider crane L× W× H |
2260*600*1470mm |
| Spider crane Hydraulic oil tank capacity |
20L |
| Spider lift weight |
1200kg |
1170kg |
1300kg |
| Spider crane Safety device (optional) |
Remote control, gradienter, torque limiter, 3 stack lights, emergency stop button, undercarriage, outriggers, boom interlock, anti-tilt device, one-button leveling |
| Spider crane RATED LIFTING CAPACITY & WORKING RANGE |
| Spider crane 1.0T (Outriggers extended to max. position) |
| Spider crane Boom2m |
Spider crane Boom3.2m |
Spider crane Boom4.3m |
Spider crane Boom5.5m |
Operating
radius (m) |
Rated total
lifting capacity (t) |
Operating
radius (m) |
Rated total
lifting capacity (t) |
Operating
radius (m) |
Rated total
lifting capacity (t) |
Operating
radius (m) |
Rated total
lifting capacity (t) |
| ＜1.5 |
1 |
＜1.5 |
1 |
＜1.8 |
0.9 |
＜2.5 |
0.7 |
| 1.65 |
0.92 |
2 |
0.8 |
2 |
0.8 |
3 |
0.55 |
|
|
2.5 |
0.65 |
2.5 |
0.65 |
3.5 |
0.45 |
|
|
2.8 |
0.56 |
3 |
0.5 |
4 |
0.35 |
|
|
|
|
3.5 |
0.45 |
4.5 |
0.25 |
|
|
|
|
4 |
0.35 |
5 |
0.22 |
|
|
|
|
|
|
5.3 |
0.18 |
