| GENERAL DIMENSIONS |

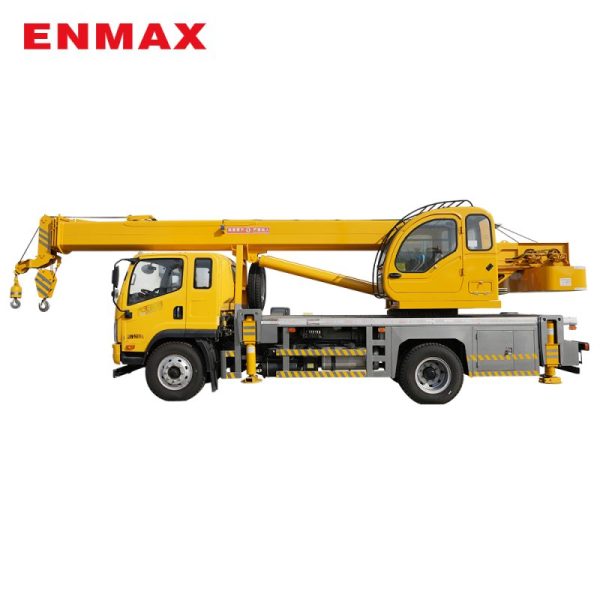

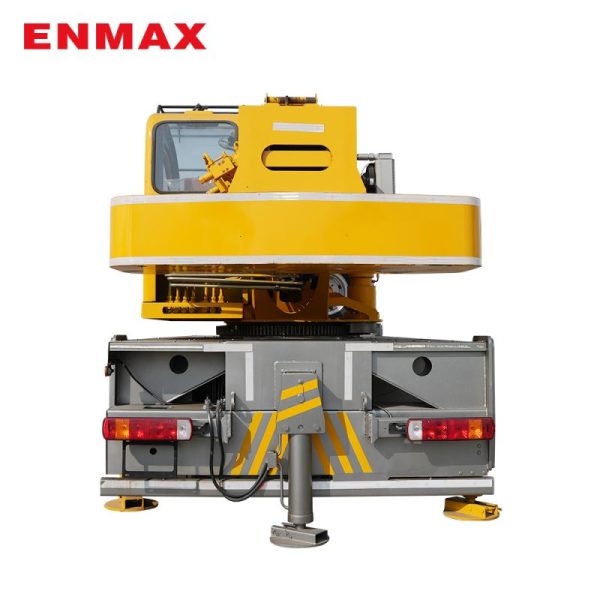

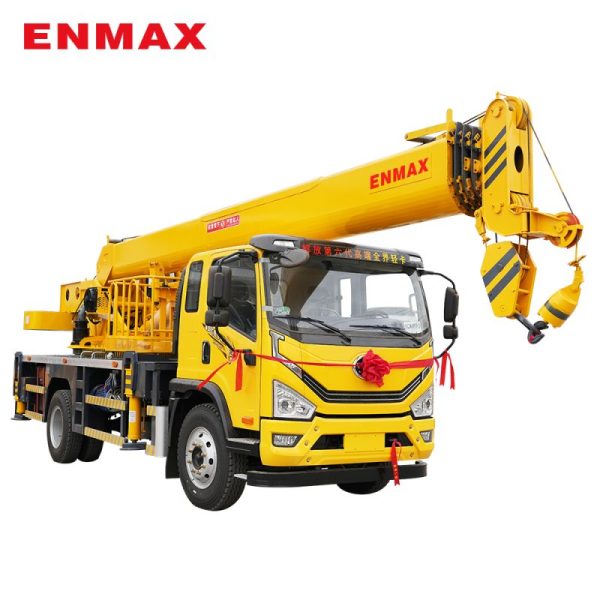

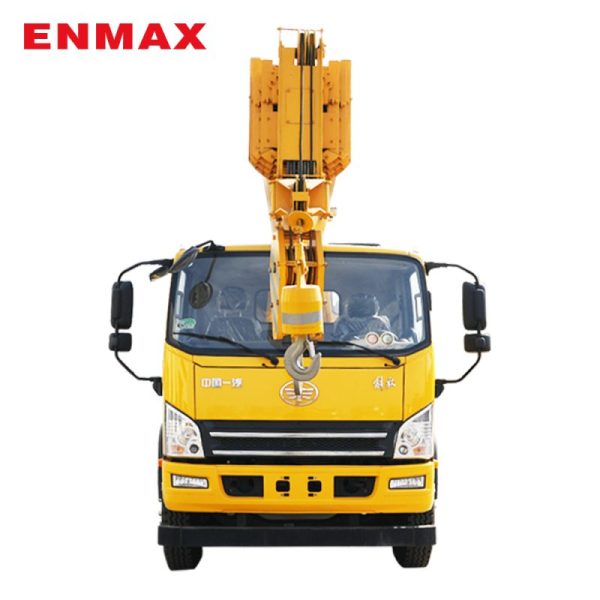

| *12 Ton FAW Jiefang Hydraulic Mobile Truck Crane* |

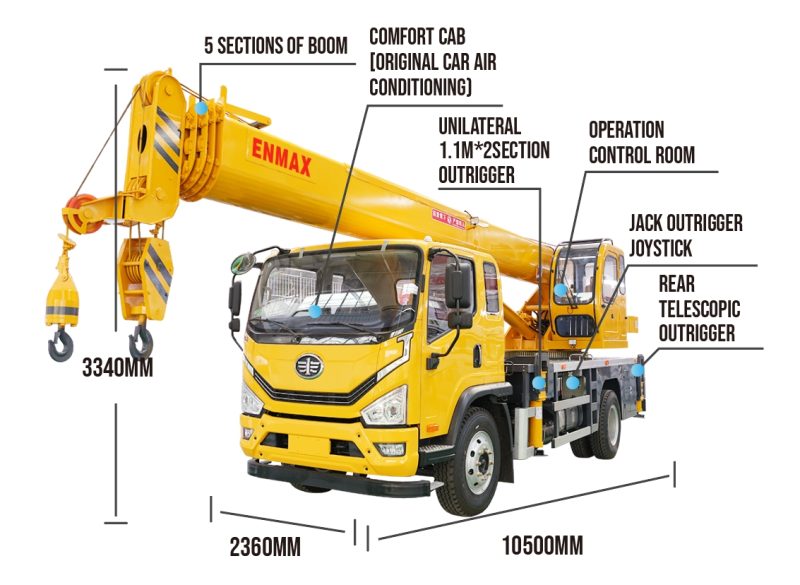

| Full car size |
10500*2360*3340mm |
| Wheelbase |
4200mm |
| Large frame size |
400mm*200mm |
| MAIN PARAMETERS |
| Engine model |
Weichai |
| Engine power |
118kw(160horsepower) |
| Gearbox model |
Fast 8-speed transmission |
| Tires |
900-R20 |
| Braking system |
Air brake (ABS) |
| TECHNICAL PARAMETERS |
| Rated lifting weight |
14000kg |
| Maximum lifting height |
36m |
| Main lifting mechanism |
12 ton winch |
| Sub-lifting mechanism |
12 ton winch |
| Lifting operation mode |
Push lever operation |
| Radius of rotation |
2.65m |
| Slewing bearing |
1.3m turntable |
| Rear displacement top |
Standard |
| Oil and electric dual-use |
15kw-6pole copper core motor |
| Protection device |
Bidirectional hydraulic lock |
| Work lamp |
Two |
| Boom |
|
| Boom structure type |
8m*5sections/8m*6sections |
| Total length of boom |
35m/40m |
| Boom flat lying distance |
22m(1 ton) |
| Rod-out form |
Synchronous scaling |
| Hydraulic system |
|
| Hydraulic pump |
Double pump |
| Steering mechanism |
Hydraulic direction assist |
| Slewing mechanism |
Secondary planetary steering |
| Outrigger |
|
| Outrigger |
5 full hydraulic legs |
| Outrigger transverse span |
6760mm |
| Outrigger longitudinal span |
5200mm |
| Outrigger telescopic length |
2.2m |
