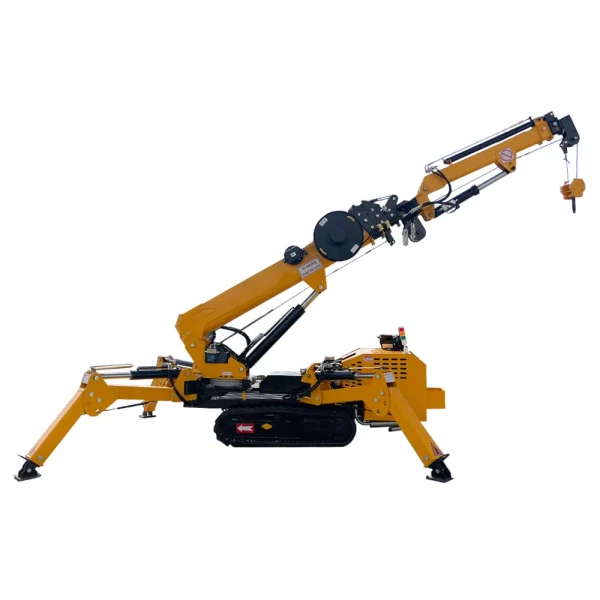

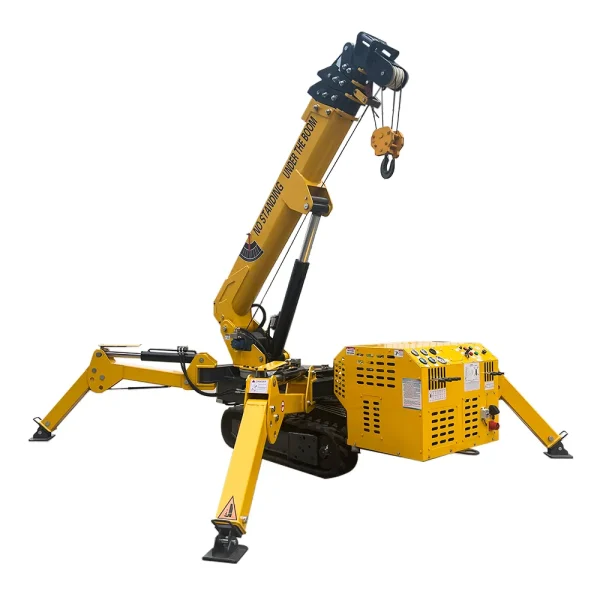

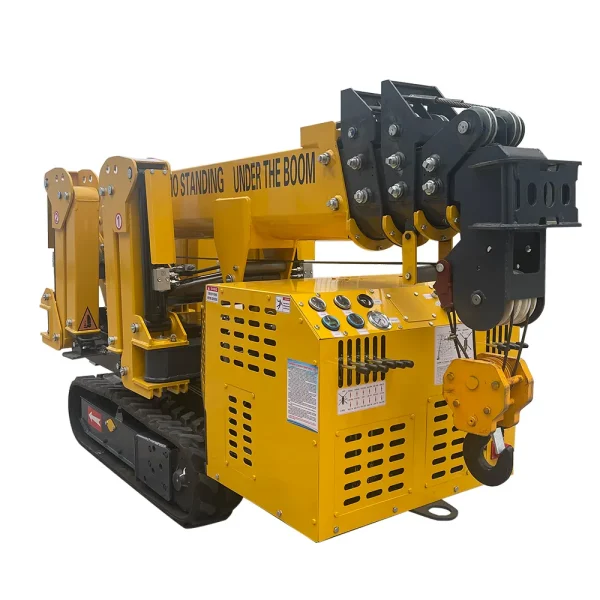

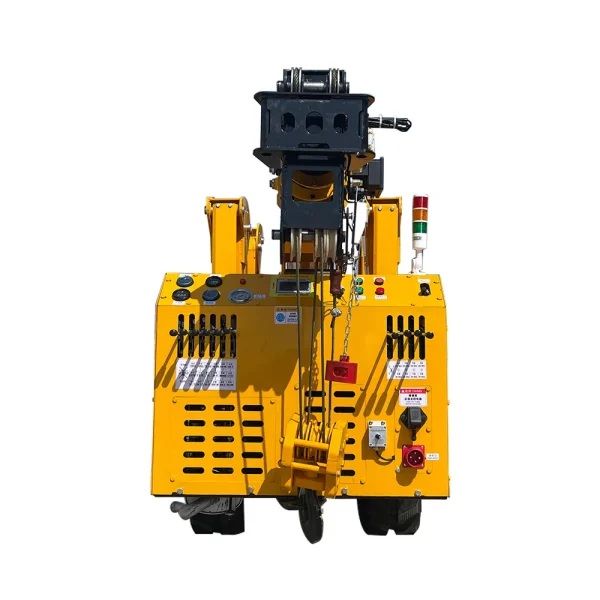

| Spider crane SPECIFICATION |
| Spider crane Model |
Spider crane HC3.0BA |
Spider crane HC3.0BB |
Spider crane HC3.0BC |
| Spider crane Power type |
Gasoline engine
+Electric motor |
Electric motor |
Battery pack
+Electric motor |
| Spider crane Lifting Capacity |
2.95T |
| Spider crane Max operating radius |
9.2m*0.2T |
| Spider crane Max. above ground lift |
10m (ratio x4) |
| Spider crane Winch |
Spider crane Winch type |
Hydraulic motor drive |
| Spider crane Hook rising speed(ratio x4) |
≥4.8m/min |
| Spider crane Wire rope diameter and length |
Φ8mmx45m（Max) |
Spider crane Telescopic
device |
Spider crane Boom type |
U-shaped fully automatic 5 stages |

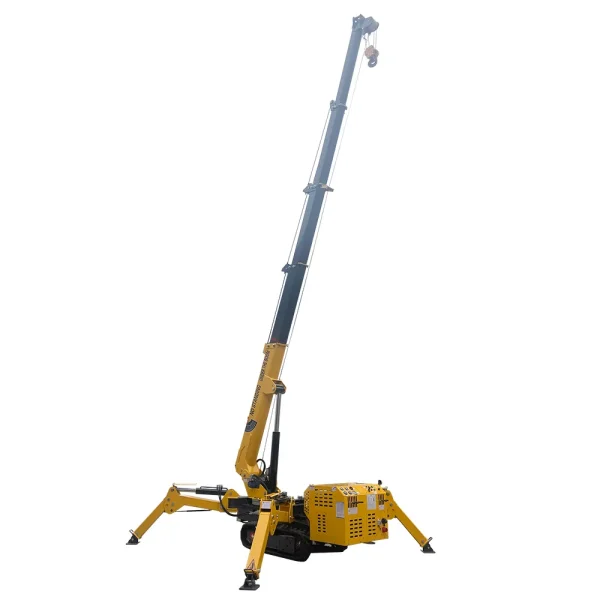

| Spider crane Boom length |
3m-9.5m |
| Spider crane Boom extension length/time |
Fully extended /26s |
| Spider crane Heaving device |
Spider crane Boom angle/time |
0-75°/18sec |
| Spider crane Swing device |
Spider crane Rotation angle/speed |
0-360 ° continuous/ 45s |
| Spider crane Outriggers |
Spider crane Outrigger operation type |
Manual rotation, automatic outriggers |
| Spider crane Max extension range |
4470mm*3940mm |
Spider crane Driving
device |
Spider crane Driving type |
Hydraulic motor drive |
| Spider crane Driving speed |
0-0.8km/h |
| Spider crane Climbing ability |
20° |
| Spider crane Track (length × width) |
1600mm*240mm |
Spider crane Power
system |
Spider crane Diesel Engine |
Spider crane Battery pack |
Spider crane Electric motor |
| Spider crane Model |
Changchai EV80
/Yanmar 3TNV88 |
Battery
capacity |
600Ah |
Model |
YYB112M-4
(3-phase AC
asynchronous motor) |
| Spider crane Displacement |
0.857L/1.642L |
Working time |
6-8h |
Voltage |
AC380V(50Hz) |
| Spider crane Rated output power |
12.0Kw/18.2Kw |
DC motor |
With battery pack |
Power/speed |
4Kw 1440r/min |
| Spider crane Starting type |
Electric start |
Voltage |
DC48V |
/ |
/ |
| Spider crane Fuel |
Diesel fuel/Gasoline |
Power/speed |
6kw 2000r/min |
/ |
/ |
| Spider crane Fuel tank capacity |
21L |
/ |
/ |
/ |
/ |
Spider crane Operation
system |
Spider crane Remote control type/distance |
Wireless remote control (joystick) /100m |
| Spider crane Outriggers |
Remote control/
manual operation |
Manual operation |
Remote control/
manual operation |
| Spider crane Driving |
Remote control/
manual operation |
Manual operation |
Remote control/
manual operation |
| Spider crane Boom |
Remote control/
manual operation |
Remote control/
manual operation |
Remote control/
manual operation |

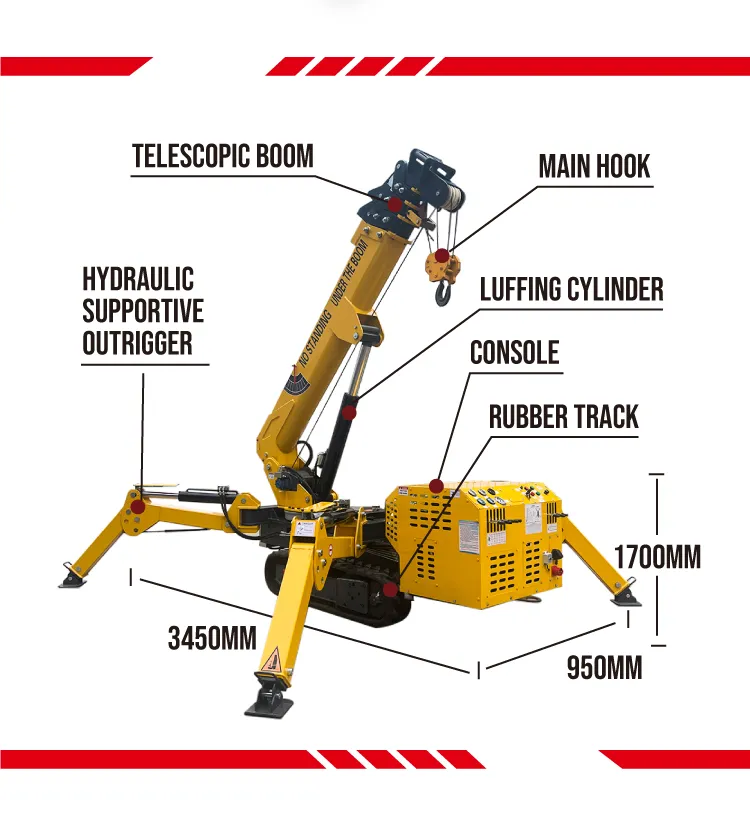

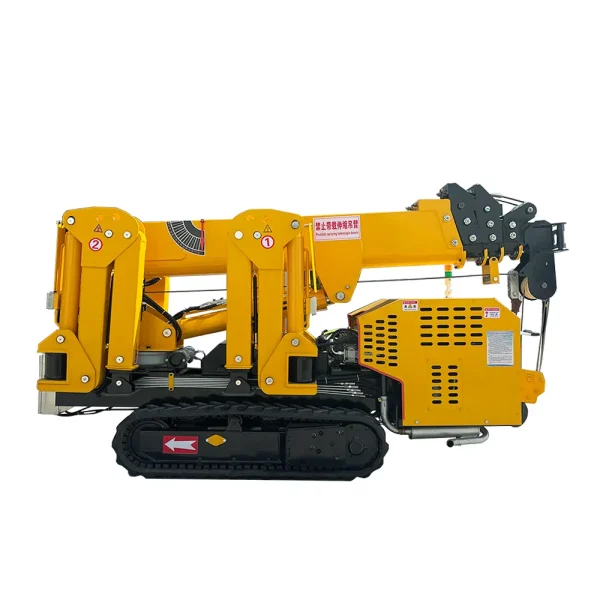

Spider crane Overal
dimensions |
Spider crane L× W× H |
3450*950*1700mm |
| Spider crane Hydraulic oil tank capacity |
40L |
| Spider crane Spider lift weight |
2400kg |
2240kg |
2600kg |
| Spider crane Safety device (optional) |
Remote control, gradienter, torque limiter, 3 stack lights, emergency stop button, undercarriage, outriggers, boom interlock, anti-tilt device, one-button leveling |
| Spider crane RATED LIFTING CAPACITY & WORKING RANGE |
| Spider crane 3.0T (Outriggers extended to max. position) |
| Spider crane Boom2.8/4.6m |
Spider crane Boom≤6.3m |
Spider crane Boom≤8m |
Spider crane Boom≤9.3m |
Operating
radius (m) |
Operating
radius (m) |
Operating
radius (m) |
Rated total
lifting capacity (t) |
Operating
radius (m) |
Rated total
lifting capacity (t) |
Operating
radius (m) |
Rated total
lifting capacity (t) |
| 1.5 |
3 |
2 |
2.9 |
2.5 |
1.75 |
4 |
1.2 |
| 2 |
2.9 |
2.5 |
1.9 |
3 |
1.45 |
4.5 |
1.05 |
| 2.5 |
2.7 |
3 |
1.6 |
3.5 |
1.1 |
5 |
0.85 |
| 3 |
2.3 |
3.5 |
1.2 |
4 |
0.9 |
5.5 |
0.65 |
| 3.5 |
1.6 |
4 |
0.2 |
4.5 |
0.68 |
6 |
0.6 |
| 4 |
1.25 |
4.5 |
0.1 |
5 |
0.63 |
6.5 |
0.55 |
| 4.5 |
1 |
5 |
0.7 |
5.5 |
0.59 |
7 |
0.4 |
|
|
5.5 |
0.65 |
6 |
0.44 |
7.5 |
0.3 |
|
|
6 |
0.55 |
7 |
0.37 |
8 |
0.25 |
|
|
|
|
8 |
0.32 |
9 |
0.2 |
