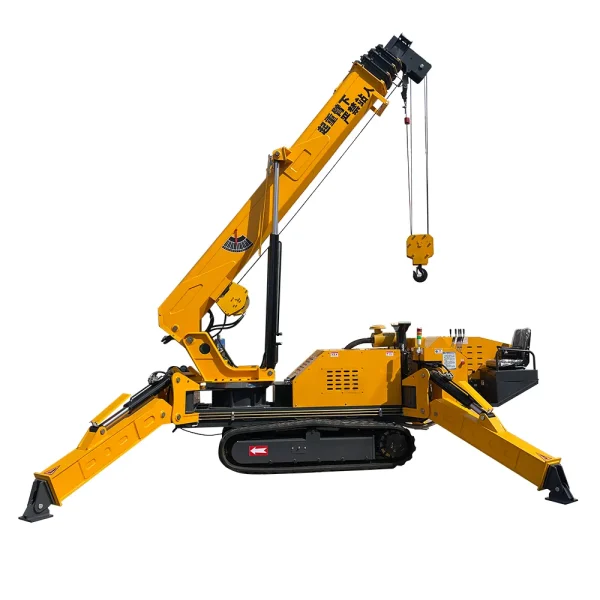

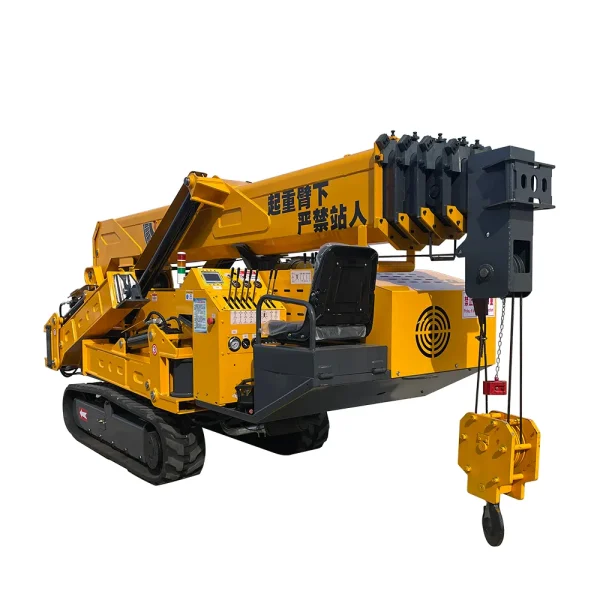

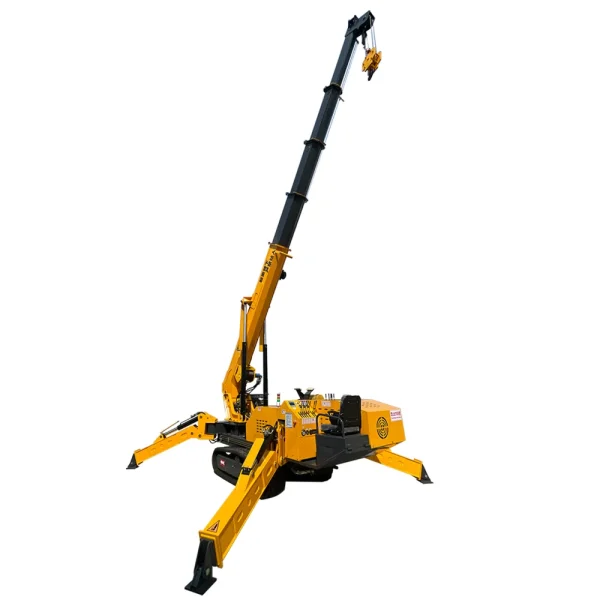

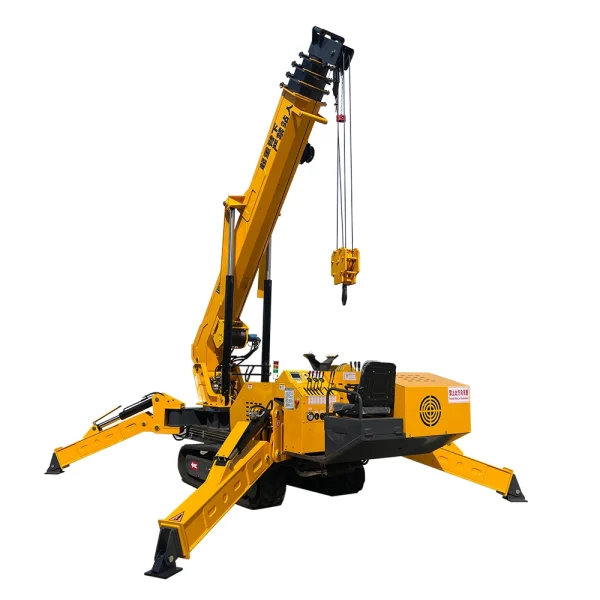

| Spider crane SPECIFICATION |
| Spider crane Model |
Spider crane HC5.0AA |
Spider crane HC5.0AB |
| Spider crane Power type |
Gasoline engine
+ Electric motor |
Electric motor |
| Spider crane Lifting Capacity |
5T |
| Spider crane Max operating radius |
14.8m*0.3T |
| Spider crane Max. above ground lift |
15.6m (ratio x4) |

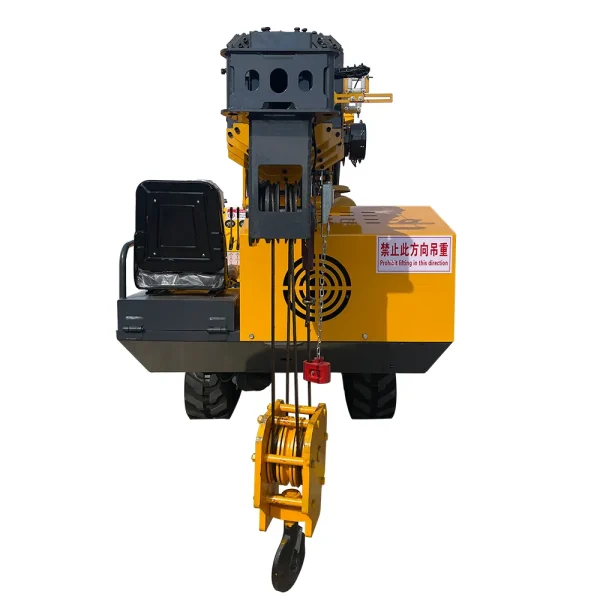

| Spider crane Winch |
Spider crane Winch type |
Hydraulic motor drive/double |
| Spider crane Hook rising speed(ratio x4) |
0-11m/min (High speed: 11m/min, low speed: 6m/min) |
| Spider crane Wire rope diameter and length |
Φ12mmx70m（Max) |
Spider crane Telescopic
device |
Spider crane Boom type |
Hexagonal fully automatic 5 stages |
| Spider crane Boom length |
5m-16.5m |
| Spider crane Boom extension length/time |
Fully extended /40s |
| Spider crane Heaving device |
Spider crane Boom angle/time |
0-78 °/46sec |
| Spider crane Swing device |
Spider crane Rotation angle/speed |
0-360 ° continuous/ 120s |

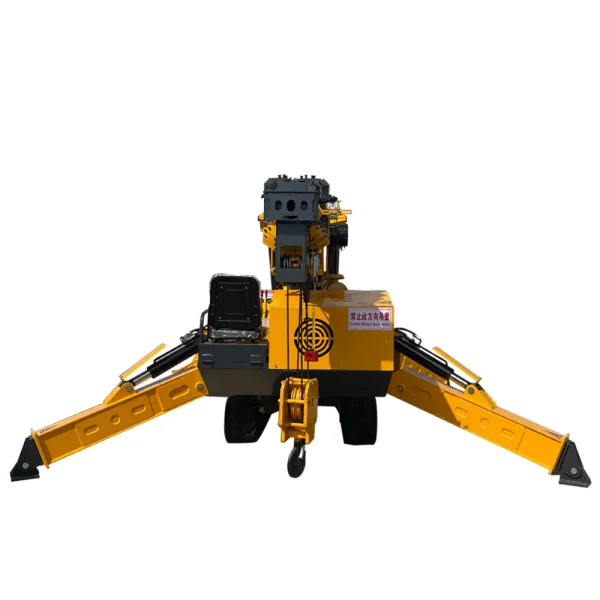

| Spider crane Outriggers |
Spider crane Outrigger operation type |
Manual rotation, automatic outriggers |
| Spider crane Max extension range |
Side:5600mm Front:5560mm Back:5000mm |
Spider crane Driving
device |
Spider crane Driving type |
Hydraulic motor drive |
| Spider crane Driving speed |
High speed: 0-2km/h, low speed: 0-0.8km/h |
| Spider crane Climbing ability |
20° |
| Spider crane Track (length × width) |
2200mm*300mm |
Spider crane Power
system |
Spider crane Diesel Engine |
Electric motor |
| Spider crane Model |
Yunnei YN25GB |
Model |
YE2-180-6
(3-phase AC
asynchronous motor) |
| Spider crane Displacement |
2.5L |
Voltage |
AC380V(50Hz) |
| Spider crane Rated output power |
37Kw |
Power/speed |
15Kw 970r/min |
| Spider crane Starting type |
Electric start |
/ |
/ |
| Spider crane Fuel |
Diesel fuel |
/ |
/ |
| Spider crane Fuel tank capacity |
45L |
/ |
/ |
Spider crane Operation
system |
Spider crane Remote control type/distance |
Wireless remote control (joystick) /100m |
| Spider crane Outriggers |
Manual operation |
Manual operation |
Manual operation |
| Spider crane Driving |
Remote control/
manual operation |
Manual operation |
Remote control/
manual operation |
| Spider crane Boom |
Remote control/
manual operation |
Remote control/
manual operation |
Remote control/
manual operation |

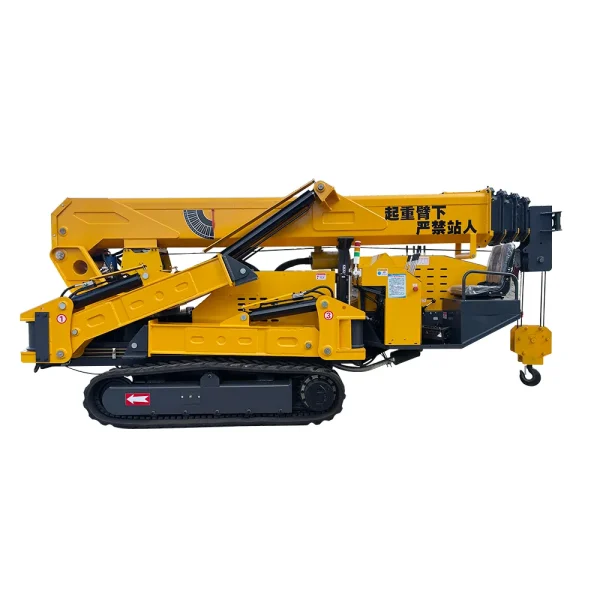

Spider crane Overal
dimensions |

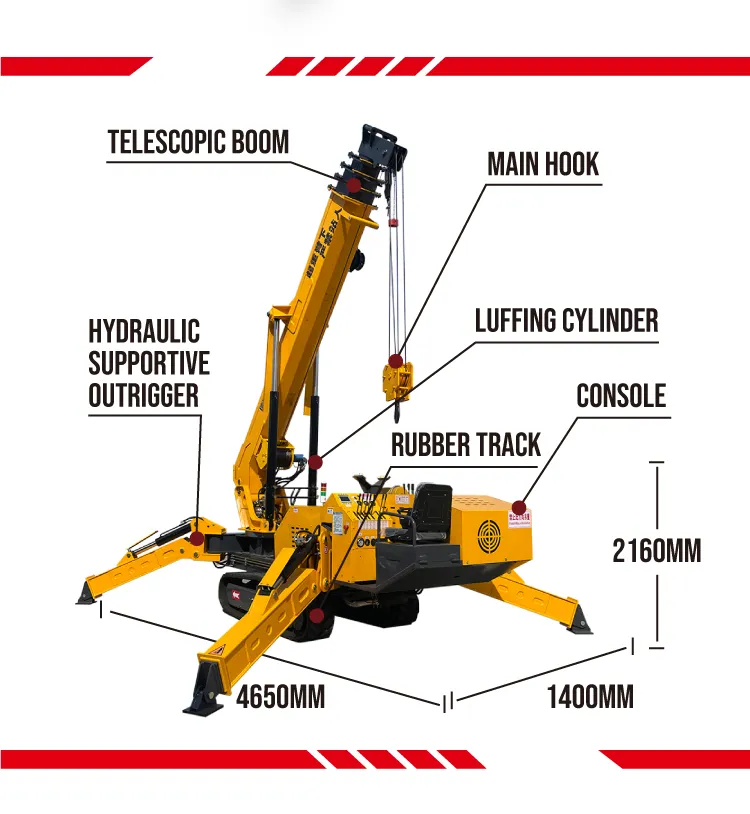

Spider crane L× W× H |
4650*1400*2160mm |
| Spider crane Hydraulic oil tank capacity |
100L |
| Spider lift weight |
6300kg |
6100kg |
| Spider crane Safety device (optional) |
Remote control, gradienter, torque limiter, 3 stack lights, emergency stop button, undercarriage, outriggers, boom interlock, anti-tilt device, one-button leveling |
| Spider crane RATED LIFTING CAPACITY & WORKING RANGE |
| Spider crane 5.0T (Outriggers extended to max. position) |
| Spider crane Boom4.2/7.7m |
Spider crane Boom10.5m |
Spider crane Boom13.5m |
Spider crane Boom16m |
Operating
radius (m) |
Rated total
lifting capacity (t) |
Operating
radius (m) |
Rated total
lifting capacity (t) |
Operating
radius (m) |
Rated total
lifting capacity (t) |
Operating
radius (m) |
Rated total
lifting capacity (t) |
| ＜2.00 |
5 |
＜3.50 |
3 |
＜4.00 |
2.5 |
＜5.00 |
1.5 |
| 2.5 |
4.2 |
4 |
2.6 |
4.5 |
2 |
5.5 |
1.2 |
| 3 |
3.5 |
5 |
2 |
5 |
1.8 |
6 |
1 |
| 3.5 |
3 |
6 |
1.5 |
6 |
1.5 |
7 |
0.8 |
| 4 |
2.5 |
7 |
1.25 |
7 |
1.2 |
8 |
0.65 |
| 5 |
2 |
8 |
1.1 |
8 |
1 |
9 |
0.65 |
| 6 |
1.8 |
9 |
1 |
9 |
0.9 |
10 |
0.55 |
| 7 |
1.5 |
10 |
0.8 |
10 |
0.8 |
11 |
0.55 |
|
|
|
|
11 |
0.65 |
12 |
0.45 |
|
|
|
|
12 |
0.55 |
13 |
0.42 |
|
|
|
|
13 |
0.45 |
14 |
0.38 |
|
|
|
|
|
|
15 |
0.35 |
|
|
|
|
|
|
16 |
0.3 |
