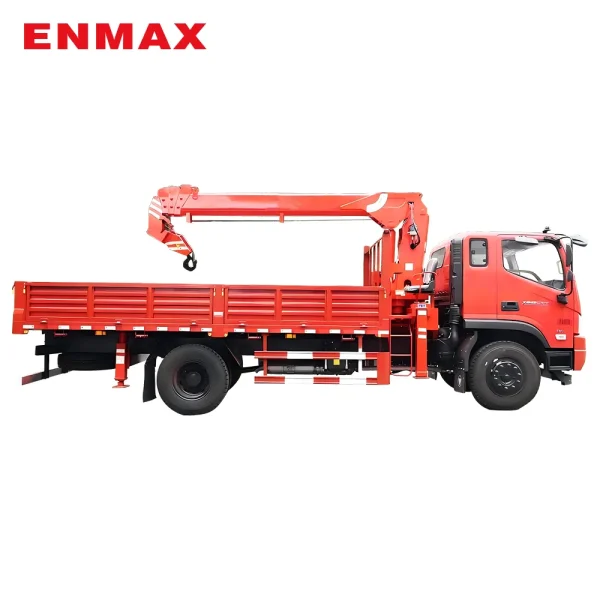

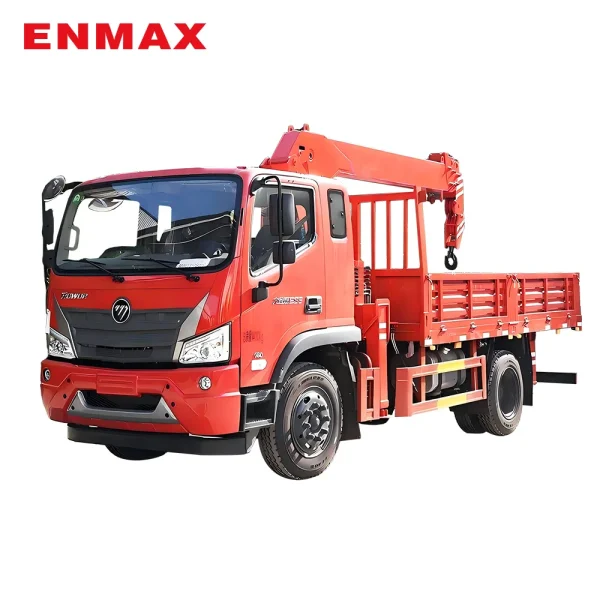

6.3 Ton Foton Hydraulic Truck Mounted Crane

Effectively improve the climbing speed; the vehicle hydraulic system adopts a new design, easy to operate, high work efficiency, compound and smooth action, stability, reliability, flexibility and comfort

  • Factory direct sales
  • Training upon arrival
  • Three-year warranty
  • Brand certification
  • Goods arrival guarantee
WhatsApp
Product Details
MAIN PARAMETERS
*6.3 Ton Foton Hydraulic Truck Mounted Crane*
Overall dimensions 8235*2550*3700mm
Truck bed dimensions 5150*2400*550mm
Wheelbase 4500mm
Max. weight (full load) 16000kg
Truck mounted crane weight 6800kg
Rated truck loading capacity 7205kg
CHASSIS
Chassis Brand Foton
Gearbox model Fast 8-speed transmission
Engine Brand Weichai
Engine power 190hp/140kw
Steering Power steering available
Axle load 4500/10000kg
Max. speed 90km/h
Cooling system Air conditioner
Accelerator Remote controlled
Chassis frame thickness 284mm （3-layers）
LIFTING & SLEWING SYSTEM
Max. lifting height 14.6m
Max. elevation angle 0-80°
Boom 3.8m x 4 sections (3.98-12.9m)
Boom extension Return rope
Max. lifting torque 15750kg*m
Hydraulic outrigger Automatic (rear outrigger optional)
Outrigger span 5.3m
Slewing angle 360°
Slewing speed 2.5r/min
