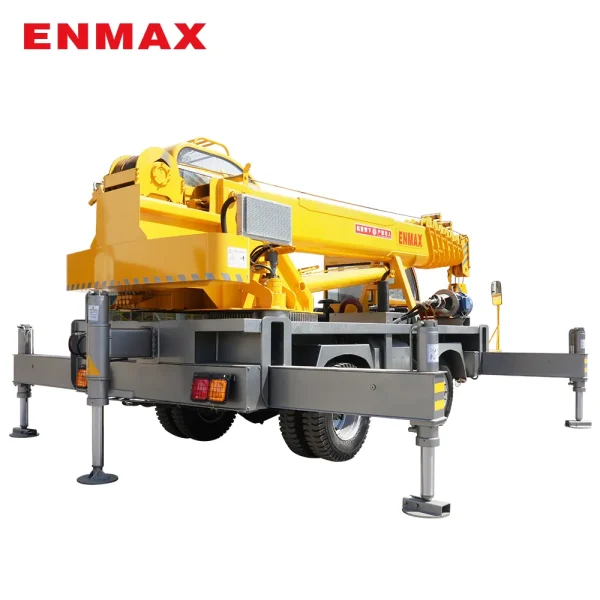

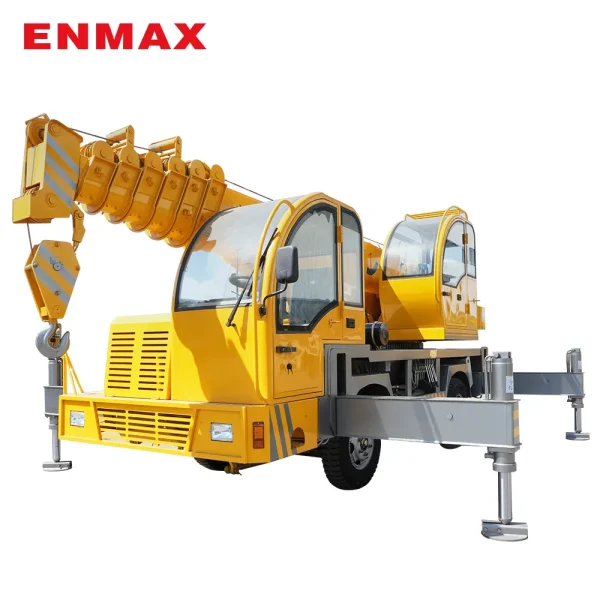

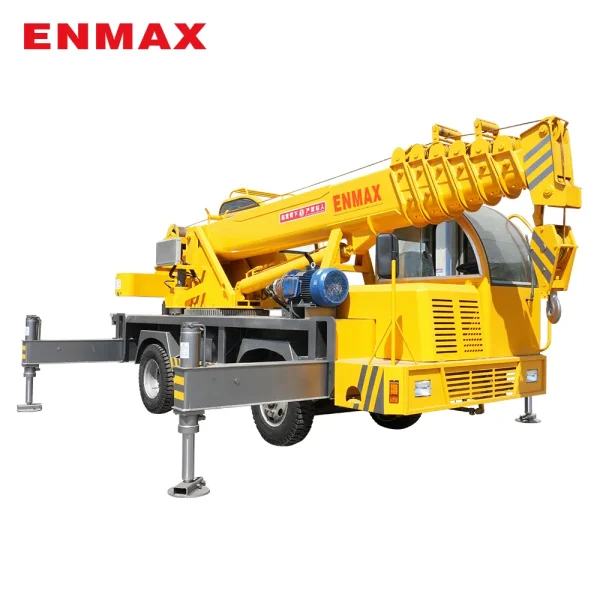

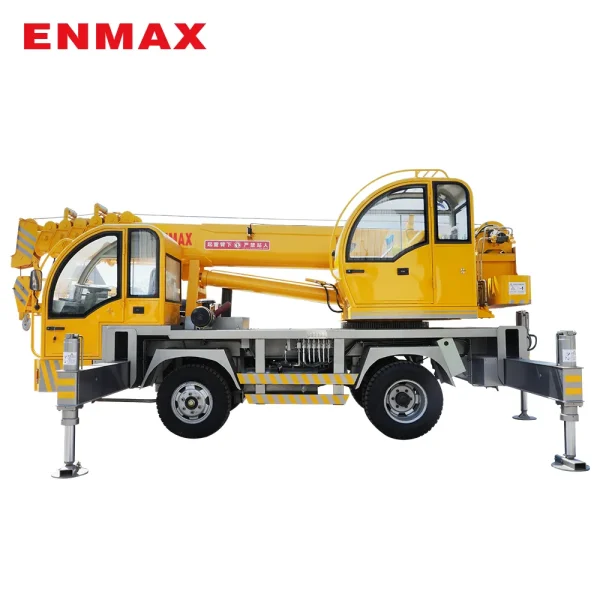

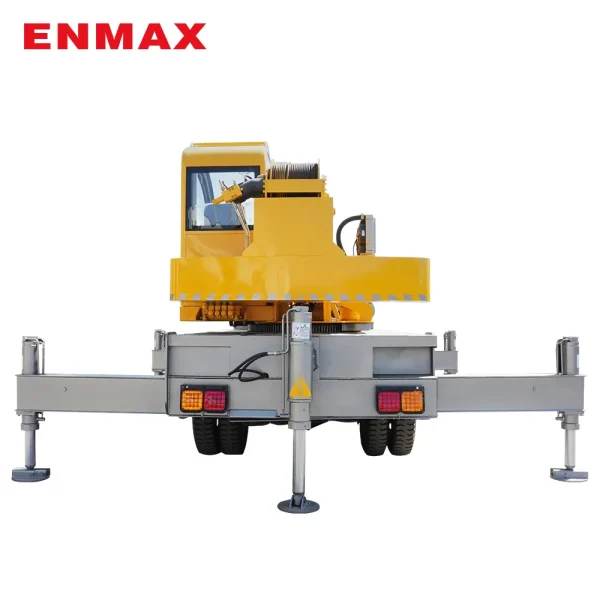

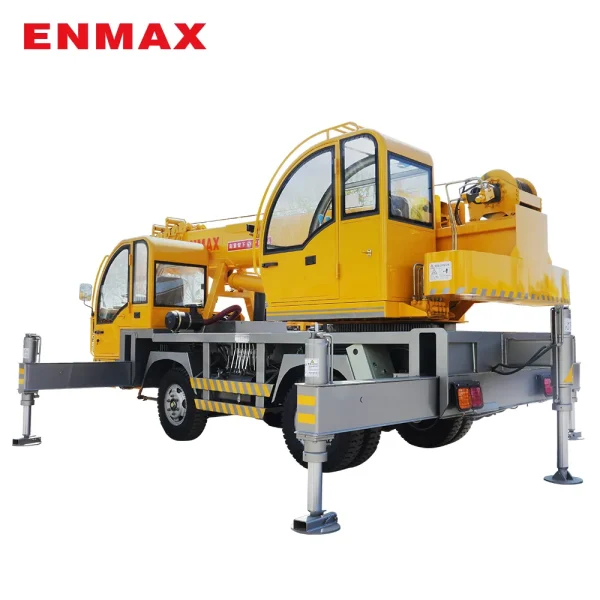

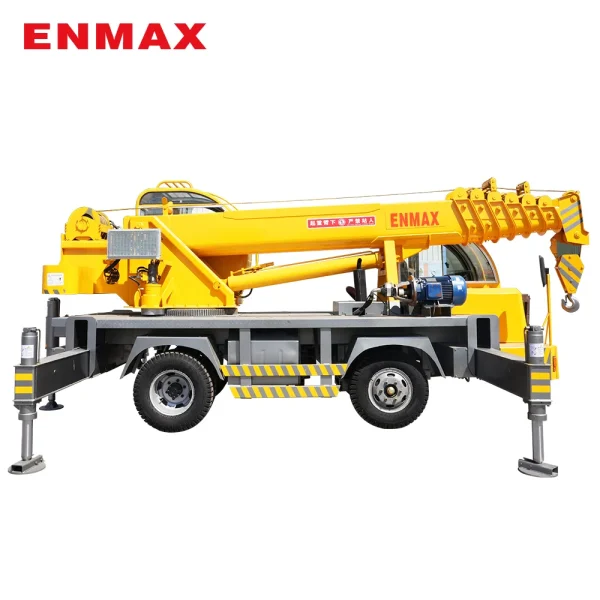

8 Ton Hydraulic Homemade Truck Crane

Effectively improve the climbing speed; the vehicle hydraulic system adopts a new design, easy to operate, high work efficiency, compound and smooth action, stability, reliability, flexibility and comfort

  • Factory direct sales
  • Training upon arrival
  • Three-year warranty
  • Brand certification
  • Goods arrival guarantee
WhatsApp
Product Details
CHASSIS
*8 Ton Hydraulic Homemade Truck Crane*
Chassis model By JQCM
Overal dimensions 8000*2100*2650mm
Wheelbase 2400mm
Engine Brand 4102
Gearbox Wanliyang
Truck frame dimensions 400*200mm
Tyre 750-R16
Braking system ABS
Engine power 70kw/96hp
Oil-electric dual-use 15kw-6 pole copper core motor
Outrigger 5pcs hydraulic outriggers
Outriggers horizontal span 4750mm
Outriggers longitudinal span 4000mm
Pump Single pump
UPPER
Rated. lifting weight 8000kg
Rated lifting height 29m
Rotating radius 1.8m
Steering Power steering available
Main lifting device 8 ton winch
Auxiliary lifting device 7 ton winch
Boom dimensions 500*310mm
Boom structure 5m * 7 sections
Boom telescopic mode synchronous telescopic boom
Slewing device Secondary planetary steering
Protection device Two-way hydraulic lock
Working lamp 2
Reducer Planetary reducer
Lifting operating mode By control lever
Slewing support turntable (diameter) 1.2mm
