| GENERAL DIMENSIONS |

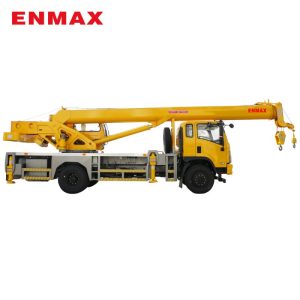

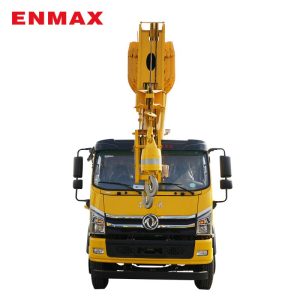

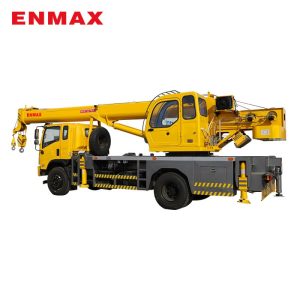

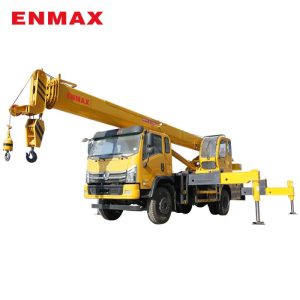

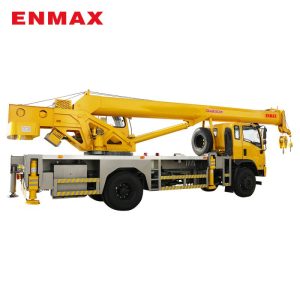

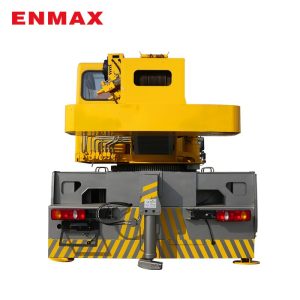

| *16 Ton Dongfeng Hydraulic Mobile Truck Crane* |
| Full car size |
11380*2500*3580mm |
| Wheelbase |
4500mm |
| Large frame size |
400*200mm |
| MAIN PARAMETERS |
| Engine model |
Yuchai |
| Engine power |
147kw(200horsepower) |
| Gearbox model |
Fast 8-speed transmission |
| Tires |
1000-R16 |
| Braking system |
Air brake (ABS) |
| TECHNICAL PARAMETERS |
| Rated lifting weight |
18000kg |
| Maximum lifting height |
38m |
| Main lifting mechanism |
16 ton winch |
| Sub-lifting mechanism |
12 ton winch |
| Lifting operation mode |
Push rod operation |
| Radius of rotation |
2.83m |
| Slewing bearing |
1.45m turntable |
| Rear displacement top |
Standard |
| Oil and electric dual-use |
15kw-6pole copper core motor |
| Protection device |
Two-way hydraulic lock |
| Work lamp |
Two |
| Boom |
| Boom structure type |
8.5m*5sections |
| Total length of boom |
42m |
| Boom flat lying distance |
26m(1 ton) |
| Rod-out form |
Synchronous scaling |
| Hydraulic system |
| Hydraulic pump |
Three pumps |
| Steering mechanism |
Hydraulic direction assist |
| Slewing mechanism |
Secondary planetary steering |
| Outrigger |
| Outrigger |
5 full hydraulic legs |
| Outrigger transverse span |
6900mm |
| Outrigger longitudinal span |
5500mm |
| Outrigger telescopic length |
2.2m |
