| CHASSIS | |

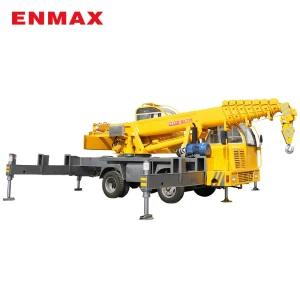

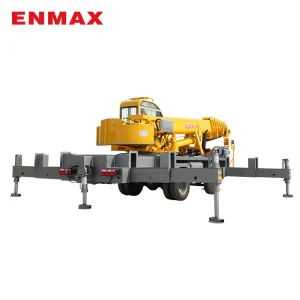

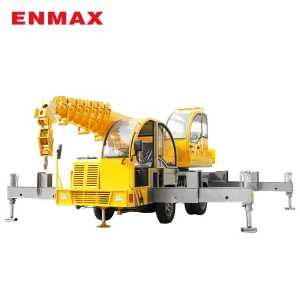

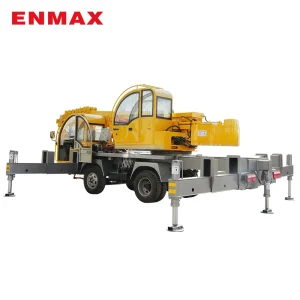

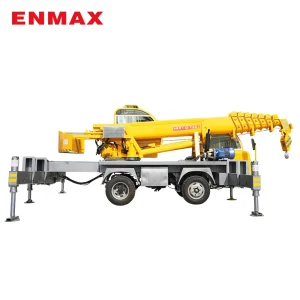

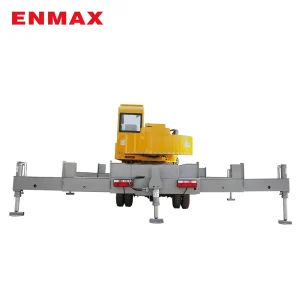

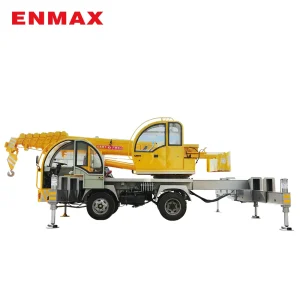

| *6 Ton Hydraulic Homemade Truck Crane* | |
| Chassis model | By JQCM |
| Overal dimensions | 6100*1850*2600mm |
| Wheelbase | 2100mm |
| Engine Brand | 4102 |
| Gearbox | Wanliyang |
| Truck frame dimensions | 400*200mm |
| Tyre | 750-R16 |
| Braking system | ABS |
| Engine power | 64kw/90hp |
| Oil-electric dual-use | 11kw-6 pole copper core motor |
| Rear frame | retractable |
| Outrigger | 5pcs hydraulic outriggers |
| Outriggers horizontal span | 4250mm |
| Outriggers longitudinal span | 3800mm |
| Pump | Single pump |
| UPPER | |
| Rated. lifting weight | 6000kg |
| Rated lifting height | 21m |
| Rotating radius | 1.7m |
| Steering | Power steering available |
| Lifting device | 8 ton winch |
| Boom dimensions | 500*300mm |
| Boom structure | 4m * 7 sections |
| Boom telescopic mode | synchronous telescopic boom |
| Slewing device | Direction planétaire secondaire |
| Protection device | Two-way hydraulic lock |
| Working lamp | 2 |
| Reducer | Planetary reducer |
| Lifting operating mode | By control lever |
| Slewing support turntable (diameter) | 1.05m |
