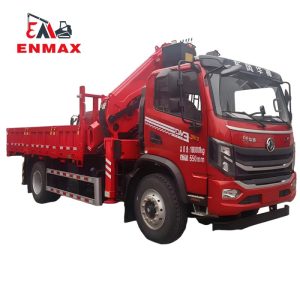

Knuckle Crane

Optional configuration: upper air conditioning, lower air conditioning, weighing device, torque limiter, wireless camera, hanging
basket, air cushion seat

Product features: Equipped with a central rotator, the turntable can rotate 360 degrees at will. Equipped with a planetary
reduction mechanism, the rotation is faster and smoother. Equipped with a hydraulic heat dissipation system to reduce oil
temperature and improve efficiency; The driving is equipped with high and low speeds, steering wheel assistance, and air brake,
making driving the vehicle easier and more flexible.

Category:

SPECIFICATION
5 Ton
8 Ton
10 Ton
12 Ton
16 Ton
20 Ton
24 Ton
Max. Load Moment(KN.m)
118
160
200
330
330
400
480
Max. Lifting Capacity(t/2m)
5
8
6.5
7.5t/3m
16
13
15
Max. Lifting Height(m)
12.1
13.2
13.2
17.2
15.7
17.6
17.7
Max. Working Radius(m)
10
11.2
11.2
15.1
13.5
15.4
15.6
Number of Telescopic Boom Sections
3
4
4
5
5
6
6
Slewing Angle
360°
Rated Working Pressure(Mpa)
30
28
28
28
28
28
30
Rated System Flow Rate(L/min)
34
60
60
60
64
84
80
Outrigger Span(m)
2290-5610
2330-5230
2330-5630
2330-5990
2330-7100
2330-7100
2330-7600
Crane Weight(kg)
2100
3800
4200
4600
5000
5700
5800
Installation Space(mm)
1000
1400
1420
1300
1530
1530
1530
