| GENERAL DIMENSIONS | |

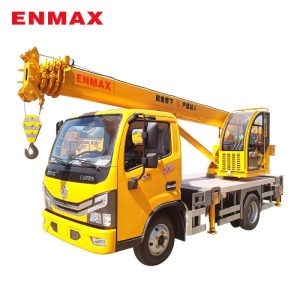

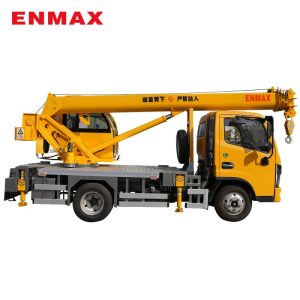

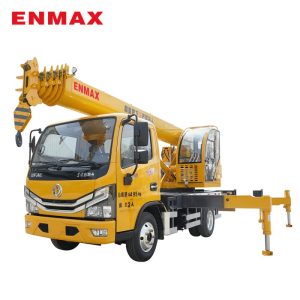

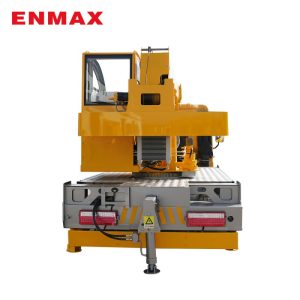

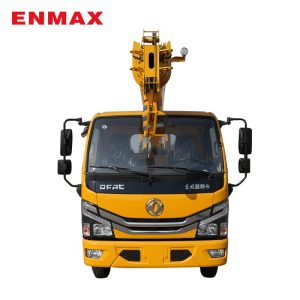

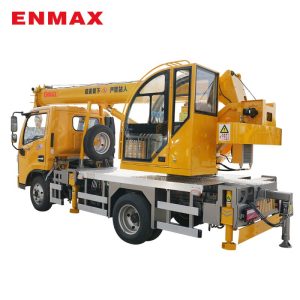

| *5 Ton Mini Dongfeng Hydraulic Mobile Truck Crane* | |
| Full car size | 5995*1950*2750mm |
| Wheelbase | 2700mm |
| Large frame size | 300*150mm |
| MAIN PARAMETERS | |
| Engine model | Full diesel |
| Engine power | 97kw(132horsepower) |
| Gearbox model | Wanliyang 5-speed gearbox |
| Tires | 650-R16 |
| Braking system | Air brake (ABS) |
| TECHNICAL PARAMETERS | |
| Rated lifting weight | 5000kg |
| Maximum lifting height | 28m |
| Main lifting mechanism | 8 ton winch |
| Lifting operation mode | Push lever operation |
| Radius of rotation | 1.7m |
| Swing speed | 0-3rpm |
| Slewing bearing | 1050mm turntable |
| Rear displacement top | There are |
| Protection device | Bidirectional hydraulic lock |
| Work lamp | Two |
| Boom | |
| Boom structure type | 5m*7sections |
| Total length of boom | 35m |
| Hydraulic system | |
| Hydraulic pump | Single pump（40#） |
| Steering mechanism | Power steering (assist) |
| Slewing mechanism | Vertical type (with balancing valve) |
| Reducer model | Planetary reducer |
| Outrigger | |
| Outrigger | 5 full hydraulic legs |
| Outrigger transverse span | 5900mm |
| Outrigger longitudinal span | 3400mm |
| Outrigger telescopic length | 2m |
