| MAIN PARAMETERS | |

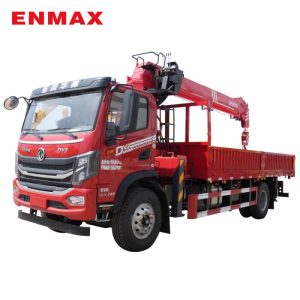

| *8 Ton Dongfeng Hydraulic Truck Mounted Crane* | |
| Overall dimension | 9000*2550*3850mm |
| Truck bed dimensions | 6100*2450*550mm |
| Wheelbase | 5100mm |
| Max. weight (full load) | 18000kg |
| Truck mounted crane weight | 12080kg |
| Rated truck loading capacity | 5725kg |
| CHASSIS | |
| Chassis model | Dongfeng Huashen DV3 |
| Gearbox model | Fast 8-speed transmission |
| Engine Brand | Yuchai |
| Engine power | 200hp/147kw |
| Steering | Power steering available |
| Axle load | 6500/11500kg |
| Max. speed | 88km/h |
| Cooling system | Air conditioner |
| Leaf spring | 9/11+8 |
| Approch/Departure angle | 21°/17° |
| ABS | Yes |
| Fuel type | Diesel |
| Displacement | 4156cc |
| Tyre | 1000R20-18PR |
| Dual-pump confluence | Aluminum hydraulic oil tank |
| LIFTING & SLEWING SYSTEM | |
| Max. lifting weight | 8000kg |
| Max. lifting height | 20m |
| Max. horizontal boom length | 17.5m |
| Max. elevation angle | 0-80° |
| Boom | 5m x 5 sections |
| Boom rope | Out rope |
